Determine:

  • INTRINSIC VISCOSITY

  • SHEAR RATE SWEEP

  • TEMPERATURE SWEEP

  • INJECTABILITY

  • HYDRODYNAMIC RADIUS

  • PROTEIN DENATURATION CURVE

Viscosity determined under blinded study conditions.

NeoVisc: Simplicity applied to sample characterization

NeoVISC™ - Microfluidic Viscometer

Specifications

  • SAMPLE AGNOSTIC

Newtonian and Non-Newtonian Fluids

  • TRUE MULTIPLEXED MEASUREMENTS:

Up to 10 samples at one time

  • BROAD DYNAMIC RANGE:

0.2-10,000 cP

  • SHEAR RATE RANGE:

1-100,000 1/s

  • REDUCED MEASUREMENT TIME:

<5 min (either 1 or 10 samples)

  • LOWEST SAMPLE VOLUME:

25 uL

  • WIDE TEMPERATURE CONTROL:

4-70 ºC

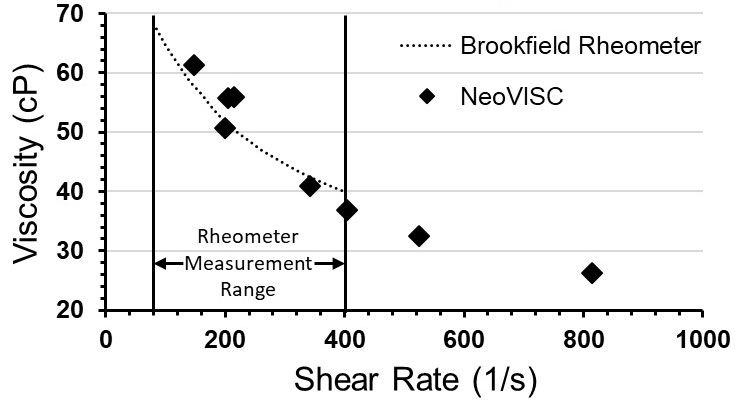

1% PEO Shear Ramp​​​​​​​

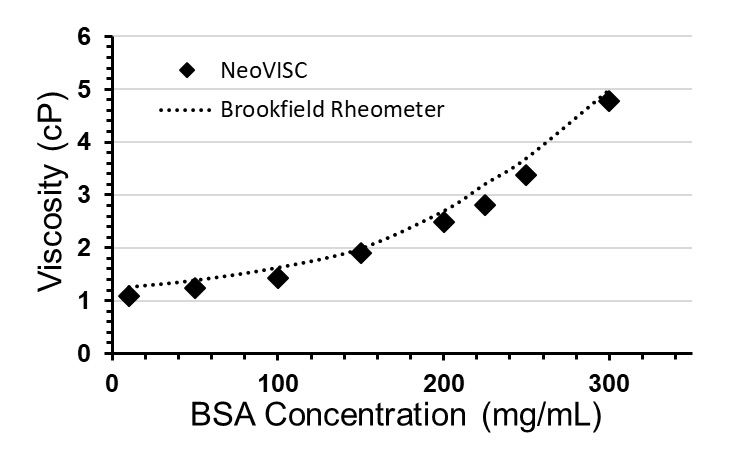

Increasing Protein Concentration
